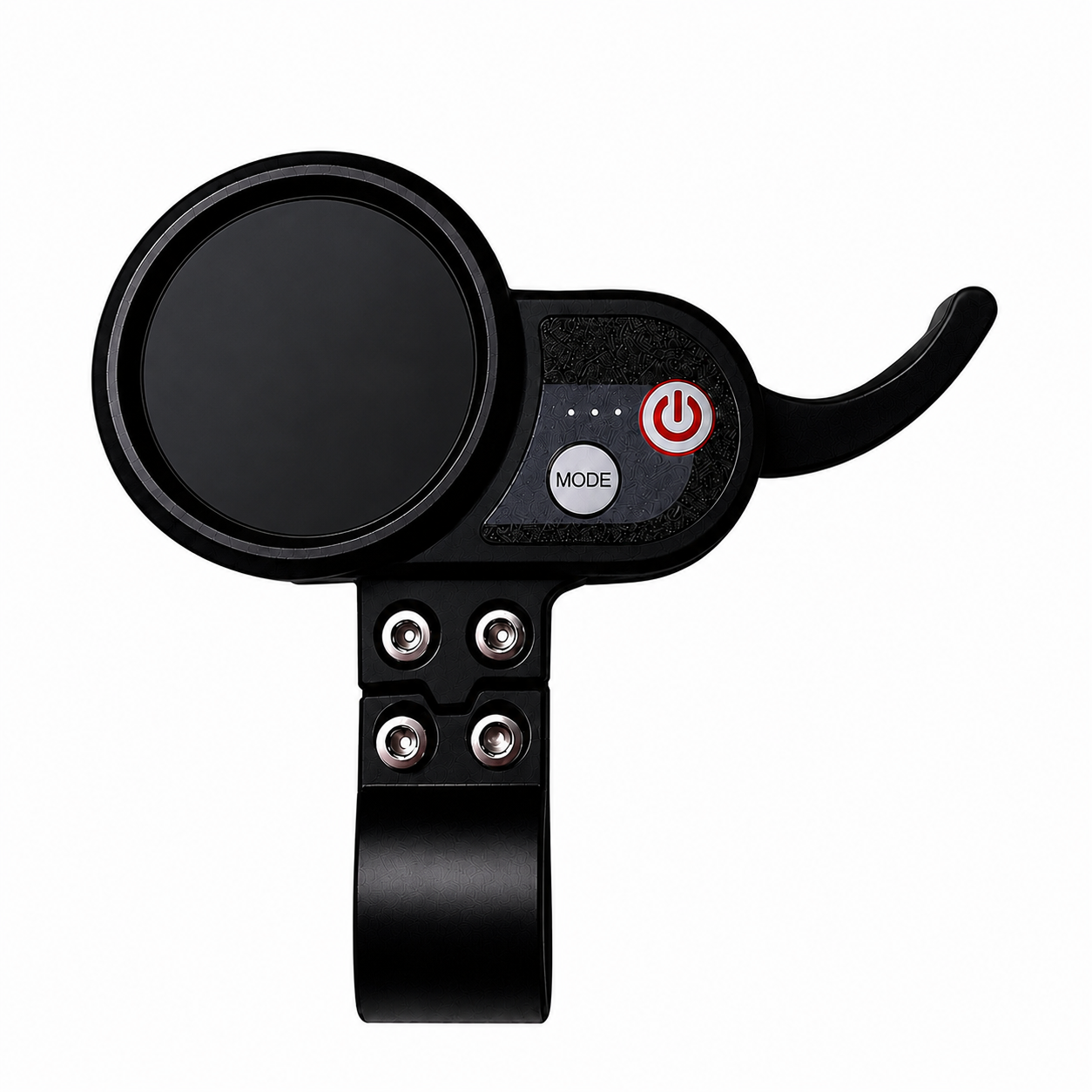

Dragon GTR, GTR V2, GT, GTS, GTS V2, Cyclone & Cyclone PRO Display (48V)

Replace your damaged, faulty or non-responsive Dragon electric scooter display with this 48V replacement display. Designed to suit Dragon GTR, GTR V2, GT, GTS, GTS V2, Cyclone and Cyclone PRO electric scooters, this dashboard display restores essential functions including speed display, battery level, riding mode selection and system information.

Ideal for repairing displays affected by water damage, cracked screens, button failures, display faults or power-on issues, helping get your Dragon electric scooter back on the road quickly and reliably.

Compatible Dragon Models

• Dragon GTR
• Dragon GTR V2
• Dragon GT
• Dragon GTS
• Dragon GTS V2
• Dragon Cyclone
• Dragon Cyclone PRO

Connector Type Selection Required

Please select the correct connector type before purchasing. These displays are available with different 6-pin connectors and are not interchangeable unless specifically adapted.

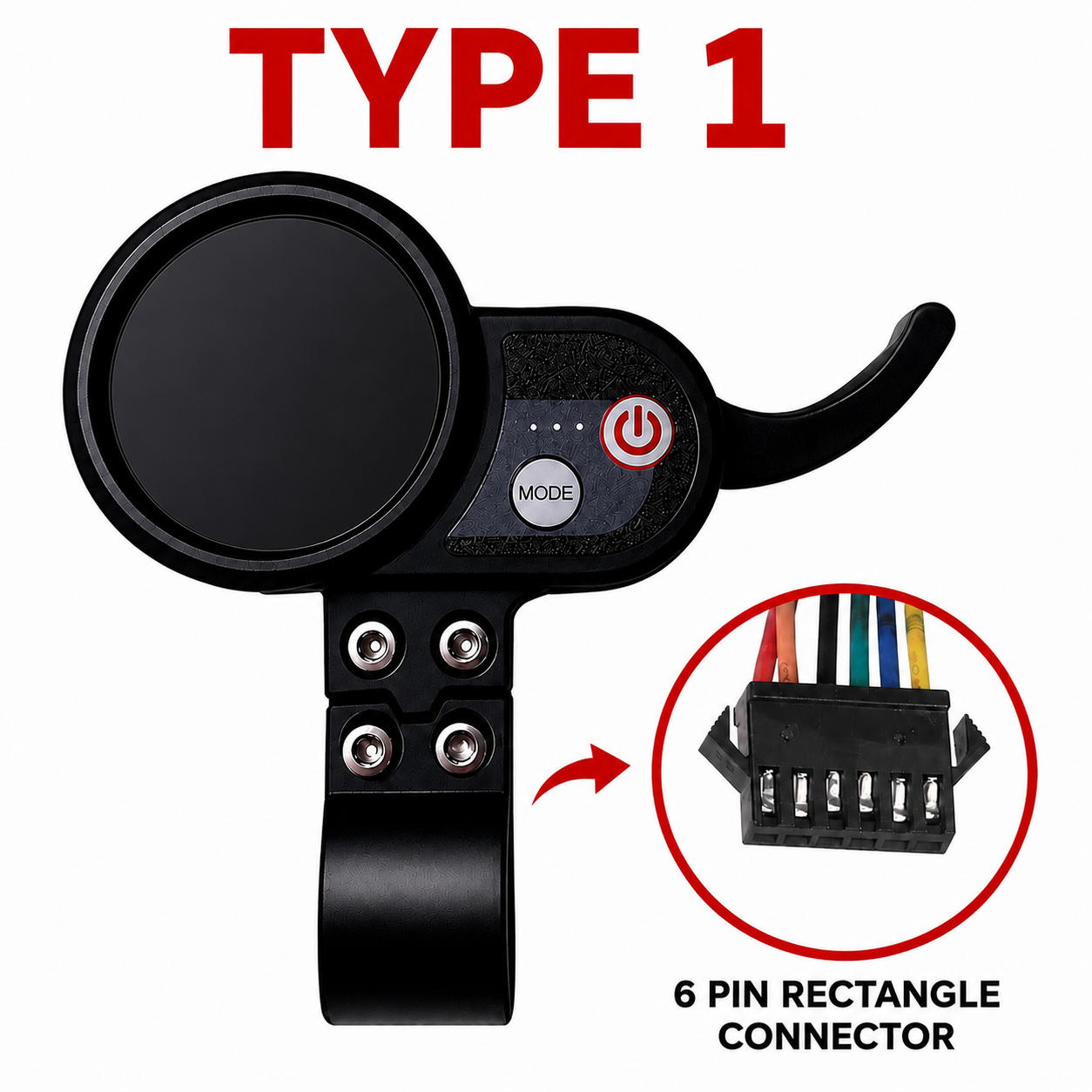

Type 1: 6-Pin JST SM Female Connector

• 6-pin JST SM female connector
• Flat black rectangular connector
• Female connector terminals

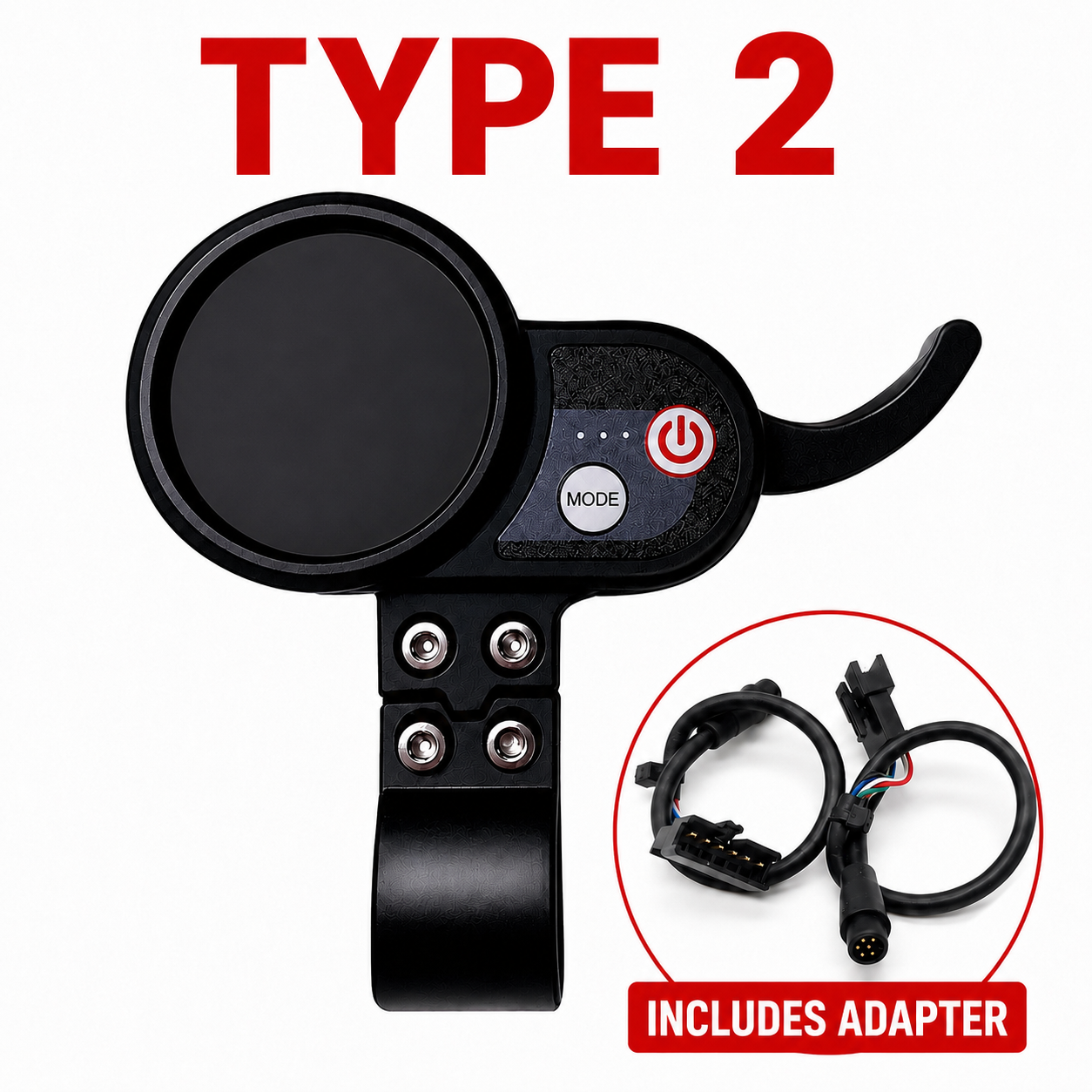

Type 2: M6 6-Pin Male Connector

• M6 6-pin male connector
• Round 6-pin connector
• Approximately 6mm connector diameter

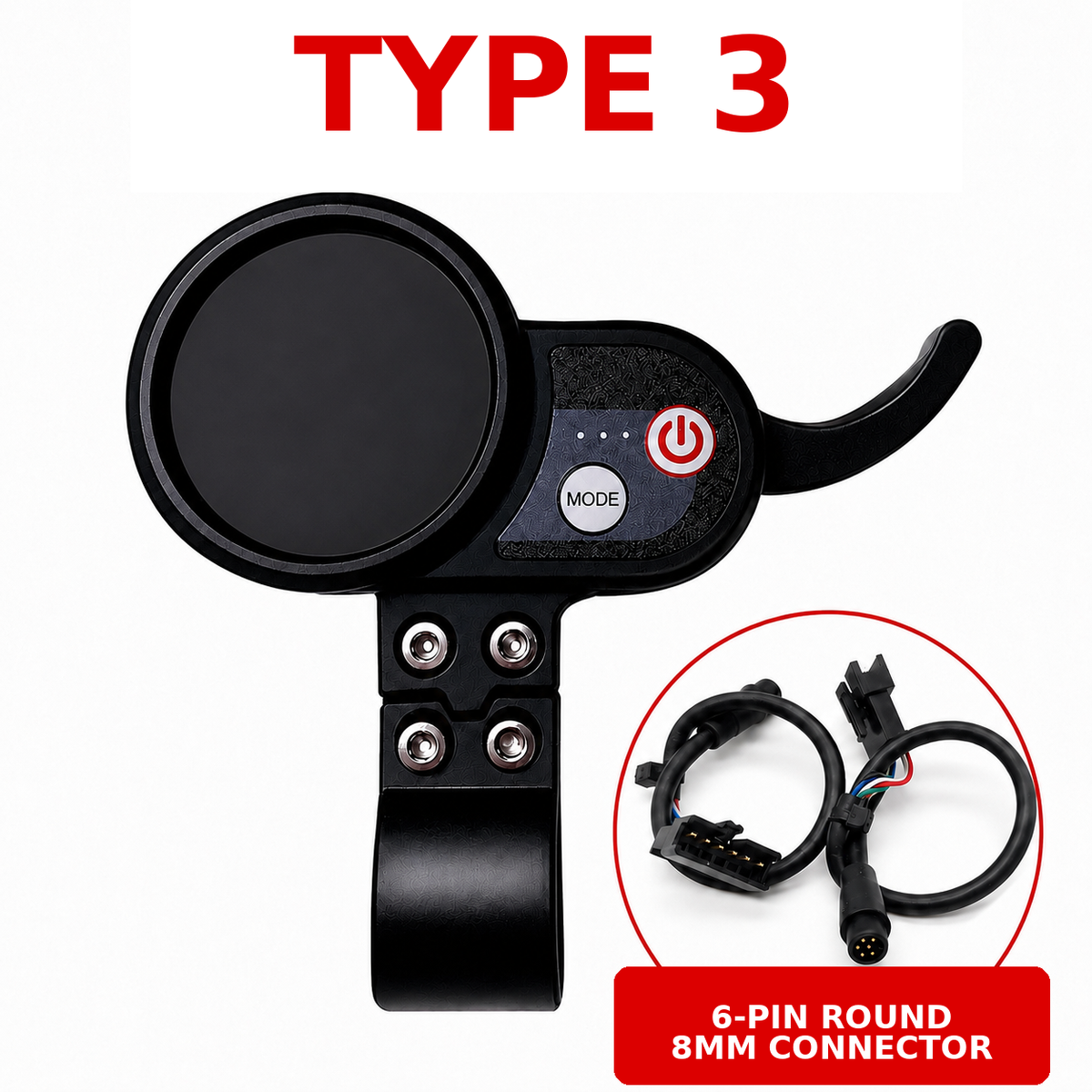

Type 3: M8 6-Pin Male Connector

• M8 6-pin male connector
• Round 6-pin connector
• Approximately 8mm connector diameter

⚠️ Important: Please compare the connector on your existing display with the product photos before ordering. Pay close attention to the connector shape, pin count, connector gender and diameter. If you're unsure which version you need, contact Bike Scooter Garage before ordering.

Features

• 48V replacement electric scooter display
• Suitable for multiple Dragon electric scooter models

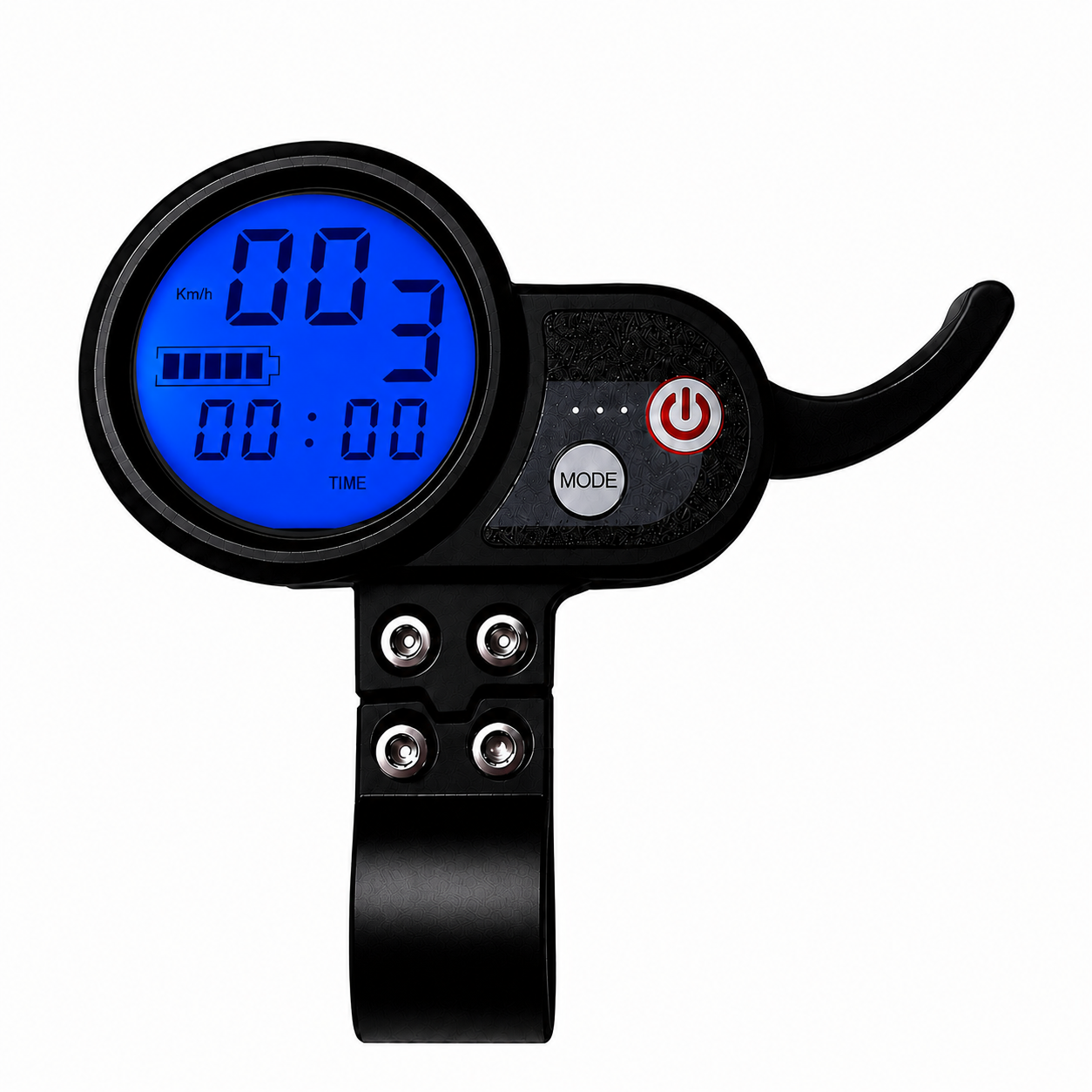

• Displays speed, battery level and riding mode
• Clear, easy-to-read LCD screen
• Durable construction
• Direct replacement for damaged or faulty displays
• Available with three different 6-pin connector options
• Helps restore normal scooter functionality

Common Fault Symptoms

This display may be suitable if your scooter has any of the following issues:

• Display will not power on
• Blank or flickering screen
• Water-damaged display
• Unresponsive buttons
• Incorrect speed readings
• Battery indicator not working
• Scooter not powering on from the dashboard
• Cracked or damaged display screen

Specifications

• Voltage: 48V
• Display Type: LCD Dashboard Display
• Connector Options:
  • Type 1: 6-Pin JST SM Female Connector - Flat Black Rectangular Connector
  • Type 2: M6 6-Pin Male Connector - Round 6 Pin 6mm Connector
  • Type 3: M8 6-Pin Male Connector - Round 6 Pin 8mm Connector
• Application: Dragon Electric Scooters

Package Includes

• 1 x Dragon Electric Scooter Display (48V)
